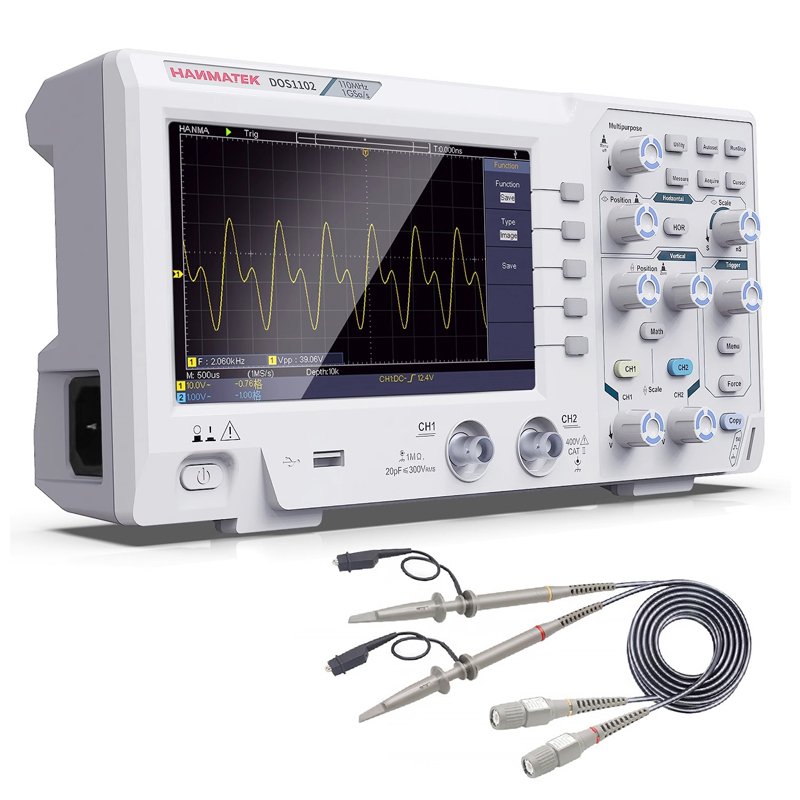

Hanmatek DOS1102 110M Portable Dual Channel Digital Storage Oscilloscope with Probe 220V EU Plug
$ 213.95
Description
Specifications:
| Gross weight | 5000g |
Hanmatek DOS1102 110M Portable Dual Channel Digital Storage Oscilloscope with Probe 220V EU Plug
Features
1. Ultra-thin digital oscilloscope, dual channel, 1GS/s sampling rate, 110M broadband.
2. Support plug-and-play USB storage devices, using USB link computer communication and remote control.
3. Compact and lightweight, easy to carry.
4. Compact body with 7″ HD color screen for easy observation.
5. Multi-language display with embedded help system in several languages.
6. A simple operator interface ensures the oscilloscope is easy to use and simple to understand.
7. Stowable carrying handle and portable design for easy portability.
Specification
1. Model: DOS1102
2. Bandwidth: 110 MHz
3. Rise time (typical on BNC): =3.5ns
4. Time base range: 2 ns/div~1000 s/div in steps of 1~2~5 decimal
5. Maximum real-time sampling rate: 1 GS/s
6. Display: 7″ TFT (true colour) LCD screen, 65536 colours, 800 x 480 pixels
7. Channels: 2 channels
8. Maximum storage depth: 10K
9. Time base accuracy: ?00ppm
10. Input coupling: DC, AC, ground
11. Input impedance: 1MO?%, in parallel with 20pF?pF
12. Maximum input voltage: 400V (DC+AC peak)
13. DC gain accuracy: ?%
14. Vertical sensitivity: 5 mV/div~5 V/div
15. Trigger type: Edge trigger, video trigger
16. Trigger mode: auto, normal, single
17. Signal system and line/field frequency (video trigger type): NTSC, PAL and SECAM broadcast systems with
any field or line frequency supported
18. Automatic measurements: period, frequency, average, peak-to-peak, root mean square, maximum,
minimum, top, bottom, amplitude, overshoot, pre-shoot, rise time, fall time, positive pulse width, negative
pulse width, positive duty cycle, negative duty cycled, etc.
19. Mathematical operations: addition, subtraction, multiplication, division, FFT
20. Waveform storage: 16 groups of waveforms
21. Communication interface: USB 2.0, support U disk storage (U disk not included)
22. Power supply: 100~240V
23. Fuse: 2A, Class T, 250V
Additional information
| Weight | 5000 g |
|---|
